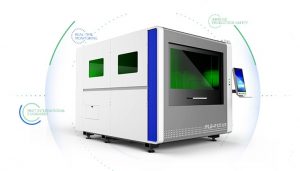

This is a full-enclosed small fiber laser cutting machine with high precision, suitable for cutting small precision parts. The whole machine adopts the new three-dimensional protective cover and the pull-out table to protect the user’s body and make the work more efficient and safe. This machine can be used in the home, it is the preferred choice for home workers and high-precision device processing.
Our high precision 1-3kW fiber laser cutting machine is the perfect solution for businesses that require superior cutting performance. With a spacious working area of 1500mm x 1500mm, this machine provides the versatility needed to handle a wide range of materials with ease.
The advanced cooling system guarantees consistent performance even during extended use. The included control software offers an intuitive interface for easy operation, while the robust construction ensures the machine’s durability in demanding industrial environments.
Whether you’re in metal fabrication, signage production, or any other industry that demands precision cutting, our 3kW fiber laser cutting machine delivers the results you need.
Better beam quality vs. multi module lasers
Greatly improved efficiency
High speed in thin sheet cutting
Strong capability in thick material processing
Highly integrated system with modular design
Easy maintenance significantly reduce TCO
>60% reduction in volume
Higher flexibility when integrated in to system
All key components are designed and produced in house
Strict quality control, high consistency and reliability
It adopts an all-inclusive design to prevent laser radiation from causing harm to human body. It is safe and environmentally friendly, in line with international safety protection standards. Using large visible laser protection safety window, can better observe the operation of the machine.
The whole structure is made of steel die casting, which is finished after artificial aging and solid solution treatment, so that the beam rigidity, surface quality, integrity and the other performance are all excellent. At the same time, it has the characteristics of high flexibility, which can achieve high-speed. cutting of all kinds of graphics under the condition of satisfying the precision.
Gantry force analysis
Model: Auto-Focusing 2D Cutting Head
Multiple cover glass protection: 3 three cover glasses to protect focusing & collimation lens.
Auto-Focusing
Auto-focusing to reduce human intervention, Max focusing speed 10m/min , repeat accuracy 50um.
Optimized Structure
Modular, easy maintenance reduces downtime.
Excellent Dust proof
IP65 class dust proof, patented protection cover glass ca-trudge, All-body anti-dust design
The lubrication system covers all moving parts of the machine, X adopts felt gear lubrication to ensure the service life of the rack and pinion, Y/Z axis screw is lubricated.
Use 68# rail oil, better adhesion type, reduce waste. Timing and quantitative lubrication; According to mileage and time, oil filling cycle and oil amount can be set.
All moving parts have the Oil lubrication system. Rack, rail, ball screw, tube cutting device, etc.
Key parts are imported, for example, YASKAWA servo motor, France MOTOVARIO reducer, PMI ball screw, YYC rack, HIWIN guide rail
Machine bed is welded with 12-16mm thick carbon structural steel dislocation honeycomb structure, machined after stress relief and annealing, then vibration-aging and natural aging treatment, so that the welding and machining stress can be eliminated, to ensure excellent rigidity and high precision of the bed, reducing the machining error caused by the vibration of the bed.
Laser protection devices are installed on both sides of the door, so that the door in the process of falling, if the human body strayed will immediately stop falling, while the alarm light on, thus solving the safety problem of the user.
The working platform combined with pull-out slide and roller is easy to operate, safe and reliable, ergonomic, convenient for feeding, and the cylinder locks the back bed to ensure safe operation and cutting precision.
Product model P1515
Working area 1500*1500mm
Max Movement Speed 140m/min
Max Acceleration 1.4G
Positioning Accuracy 0.03mm/m
Re-position Accuracy 0.02mm/m
|
Name
|
Parameters
|
|---|---|
|
Max Movement Speed
|
140m/min
|
|
Max Acceleration
|
1.4G
|
|
Positioning Accuracy
|
0.03mm/m
|
|
Re-position Accuracy
|
0.02mm/m
|
|
Name
|
Key parts
|
Quantity
|
Brand
|
|---|---|---|---|
|
Laser source
|
|
1
|
Maxphotonics
|
|
Laser head
|
Laser head
|
1
|
Raytools
|
|
Machine
|
|||
|
Machine bed
|
1
|
Aging treatment plate welding machine body
|
|
|
Gantry
|
1
|
Cast Aluminum (Whole)
|
|
|
X、Y gear&rack
|
3
|
Taiwan YYC
|
|
|
X, Y, Z Rail
|
3
|
Taiwan HIWIN
|
|
|
Ball screw
|
1
|
Taiwan PMI
|
|
|
Pneumatic component
|
Some
|
Japan SMC
|
|
|
Electric Elements
|
Some
|
Schneider, France
|
|
|
Servo motor
|
4
|
Japan Yaskawa
|
|
|
Reducer
|
3
|
France MOTOVARIO reducer
|
|
|
Software
|
Control system
|
1
|
Cypcut
|
|
Cooling
|
Chiller
|
1
|
China Hanli
|
|
Dusk removal system
|
Separate remove
|
4
|
|
|
Industrial Computer
|
|
1
|
Advantech 21.5 inch
|
